All products

Storage tray trolleys for boxes

0 / Write a review

Professional trolleys and servants for transporting and storing bins in industrial, logistics, and agrifood environments.

  • Modular structure made of high quality steel tube and profile
  • Epoxy coating blue RAL 5007
  • 4 swivel wheels, 2 of which have brakes, ball bearing hubs for all models except CH11085, CH11086, CH11087, CH11076, CH11077 and CH11078 (2 fixed wheels and 2 swivel wheels)
Price from 187.79€

  • Need help

    01 45 10 15 20
  • Buy this product online or ask us for a quote!
  • The delivery times indicated on the site are in working days
  • The prices indicated on the site are exclusive of tax
  • Free shipping from 500€ HT of order
Reference CSB_01
Material Steel
Load capacity 200 to 250 kg
Color Blue
Origin Germany

Trolleys and Servants for Bins

Trolleys and servants for bins represent a versatile professional solution for the transport, storage, and organization of bins in industrial, logistics, or agrifood environments. Their robust and modular design makes it possible to efficiently move large quantities of bins while ensuring safety, stability, and ergonomics for the user. These equipment items are suited for all sectors requiring mobility, hygiene, and space saving.

Structure and Materials

The structure of our trolleys and servants is made of top-quality steel tubing and profiles, offering maximum resistance to impacts, torsion, and daily intensive use. The blue RAL 5007 epoxy coating finish ensures:

  • Protection against corrosion
  • Easy cleaning
  • A durable aesthetic appearance

This robustness allows them to support heavy loads while guaranteeing the longevity of the equipment. The modularity of the structure also makes it possible to adapt the trolley to the dimensions of the bins used, whether Euro-Line, Basicline, or other standard formats.

Wheel System and Maneuverability

All our models are equipped with 4 wheels, including 2 swivel wheels for optimal maneuverability. The two wheels with brakes stabilize the trolley when stationary, guaranteeing safety and bin retention. Ball-bearing hubs provide smooth and silent rolling, even under heavy loads.

Specific models (CH11085, CH11086, CH11087, CH11076, CH11077, and CH11078) feature 2 fixed wheels and 2 swivel wheels, combining stability and maneuverability on all floor types. This configuration allows the trolley to be easily moved even in confined spaces or over long distances.

Ergonomics and Safety

  • Ergonomic handles and adapted working height for easy access to bins
  • Wheel brakes to secure the trolley during loading and unloading
  • Reduction of user fatigue and improvement of handling comfort

Compatibility and Modularity

These trolleys are designed to transport multiple bins simultaneously, optimizing workflow and storage in stocking areas. Modularity allows shelves or supports to be configured according to the number and format of the bins used, offering maximum flexibility.

The models are stackable and compatible with standard Euro-Line and Basicline bins, facilitating space organization while enabling rapid and secure transport of goods.

Key Advantages

  • Efficient and secure transport of bins
  • Robust and durable construction for intensive use
  • Epoxy coating for corrosion resistance and easy maintenance
  • Swivel wheels and brakes for maneuverability and safety
  • Modularity and compatibility with various bin formats
  • Adapted ergonomics to reduce fatigue and improve productivity

Conclusion

Trolleys and servants for bins are essential professional solutions to optimize handling, storage, and transport of bins in all industrial and logistics environments. Their robust, modular, and secure design guarantees practical and durable use while improving the efficiency and safety of daily operations.

Write a review - Storage tray trolleys for boxes

Please login or register to review
Image SKU Product designation Unit price Outer dimensions Usable dimensions Weight Load capacity Indicative shipping time Packing Qty / Quote / Cart

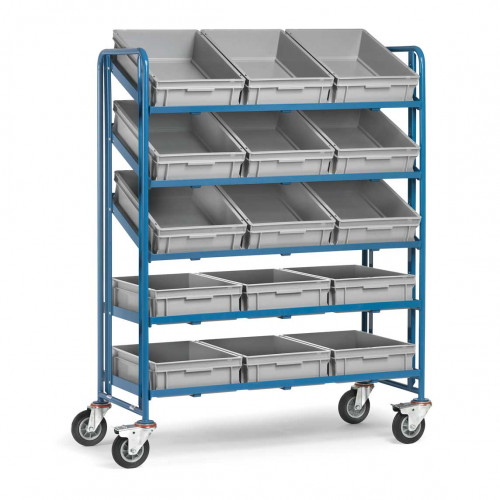

Euro box carts with boxes - 250 kg CH11084 Euro box carts with boxes - 250 kg 1,410.10€ 1372 x 685 x H1686 mm 1240 x 610 mm 96 kg 400 kg On command - dispatch 3 to 4 weeks 1
Euro box carts with open frame - 250 kg CH11057 Euro box carts with open frame - 250 kg 979.89€ 1372 x 685 x H1686 mm 1240 x 610 mm 70 kg 400 kg On command - dispatch 3 to 4 weeks 1
Euro box carts with open frame - 200 kg CH11056 Euro box carts with open frame - 200 kg 590.67€ 935 x 666 x H1101 mm 820 x 610 mm 33 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box cart with open frame - 200 kg CH11055 Euro box cart with open frame - 200 kg 507.03€ 525 x 666 x H1101 mm 410 x 610 mm 27 kg 250 kg On command - dispatch 3 to 4 weeks 1
Shelved trolley with push bar - 250 kg CH11051 Shelved trolley with push bar - 250 kg 343.14€ 714 x 480 x H970 mm 605 x 408 mm 19 kg 250 kg On command - dispatch 3 to 4 weeks 1
Shelved roller - 250 kg CH11048 Shelved roller - 250 kg 339.75€ 677 x 414 x H638 mm 605 x 408 mm 17 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box roller with platform and push bar - 250 kg CH11047 Euro box roller with platform and push bar - 250 kg 223.66€ 747 x 414 x H970 mm 605 x 408 mm 13 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box roller with open frame and push bar - 250 kg CH11046 Euro box roller with open frame and push bar - 250 kg 187.79€ 716 x 414 x H970 mm 610 x 408 mm 11 kg 250 kg On command - dispatch 3 to 4 weeks 1
Storage trolley with boxes - 200 kg CH11087 Storage trolley with boxes - 200 kg 525.12€ 821 x 455 x H1282 mm 605 x 405 mm 28 kg 200 kg On command - dispatch 3 to 4 weeks 1
Storage trolley with boards - 200 kg CH11086 Storage trolley with boards - 200 kg 477.24€ 821 x 455 x H1178 mm 600 x 400 mm 31 kg 200 kg On command - dispatch 3 to 4 weeks 1
Storage trolley with open frame - 200 kg CH11085 Storage trolley with open frame - 200 kg 425.92€ 821 x 455 x H1178 mm 605 x 405 mm 22 kg 200 kg On command - dispatch 3 to 4 weeks 1
Shelved roller with push bar - 250 kg CH11049 Shelved roller with push bar - 250 kg 404.62€ 747 x 414 x H970 mm 605 x 408 mm 18 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box carts with boards - 250 kg CH11083 Euro box carts with boards - 250 kg 1,263.26€ 1372 x 685 x H1686 mm 1240 x 610 mm 109 kg 400 kg On command - dispatch 3 to 4 weeks 1
Euro box carts with boxes - 200 kg CH11082 Euro box carts with boxes - 200 kg 756.28€ 935 x 666 x H1101 mm 820 x 610 mm 53 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box carts with boards - 200 kg CH11081 Euro box carts with boards - 200 kg 696.52€ 935 x 666 x H1101 mm 820 x 610 mm 48 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box cart with boxes - 200 kg CH11080 Euro box cart with boxes - 200 kg 590.68€ 525 x 666 x H1101 mm 410 x 610 mm 80 kg 250 kg On command - dispatch 3 to 4 weeks 1
Euro box cart with boards - 200 kg CH11079 Euro box cart with boards - 200 kg 559.94€ 525 x 666 x H1101 mm 410 x 610 mm 35 kg 250 kg On command - dispatch 3 to 4 weeks 1
Trolley with 3 shelves + 3 bins – 820 × 450 × H1178 mm – 200 kg load CH11078 Trolley with 3 shelves + 3 bins – 820 × 450 × H1178 mm – 200 kg load 628.24€ 821 x 455 x H1282 mm 605 x 405 mm 30 kg 200 kg On command - dispatch 3 to 4 weeks 1

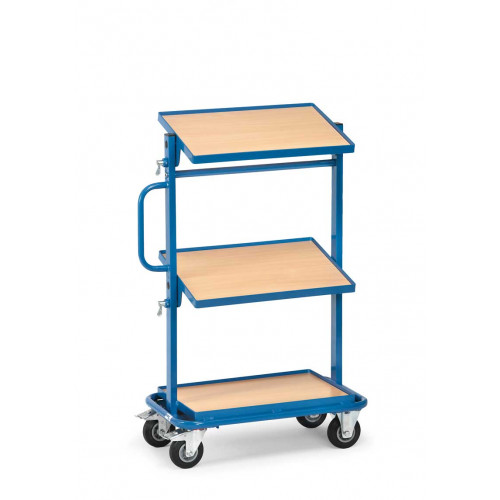

Storage trolley with tiltable surfaces - 200 kg CH11077 Storage trolley with tiltable surfaces - 200 kg 573.59€ 821 x 455 x H1178 mm 605 x 405 mm 33 kg 200 kg On command - dispatch 3 to 4 weeks 1
Storage trolley with open frame and utiltable surfaces - 200 kg CH11076 Storage trolley with open frame and utiltable surfaces - 200 kg 522.38€ 821 x 455 x H1178 mm 605 x 405 mm 24 kg 200 kg On command - dispatch 3 to 4 weeks 1

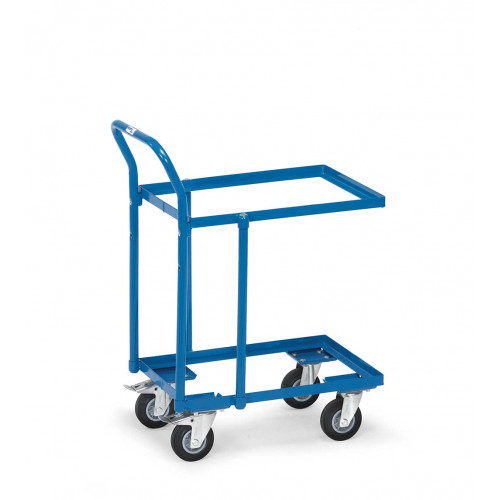

Shelved roller with open frame and push bar - 250 kg CH11050 Shelved roller with open frame and push bar - 250 kg 295.35€ 714 x 480 x H970 mm 605 x 408 mm 15 kg 250 kg On command - dispatch 3 to 4 weeks 1
