Drawer cabinets - PM-A4K ESD

PM-A4K Block – Antistatic Storage for Electronic Components

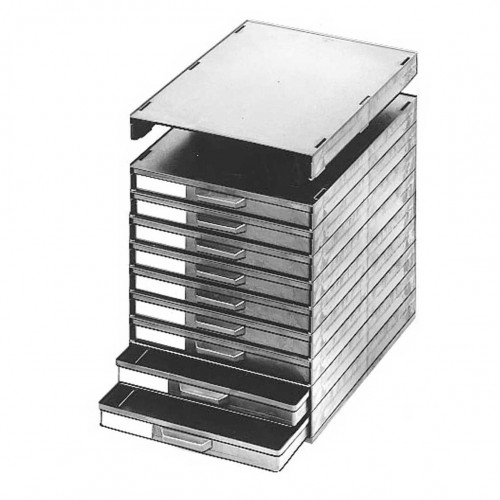

The PM-A4K block is an innovative storage solution for industrial and electronic environments requiring protection against electrostatic discharges. Composed of 9 conductive drawer-compartments, it is designed to organize, store, and safely transport electronic components or static-sensitive parts. Each drawer forms a stackable and self-locking tray, ensuring stability and safety when stacking multiple blocks.

Modular Storage Options

The drawers can be equipped with antistatic thermoformed honeycomb grids or modular cups:

• Honeycomb grids : Optimal hold for delicate components, adequate ventilation, reduction of risks related to involuntary movements.
• Modular cups : Organization of small electronic parts such as resistors, capacitors, diodes, or integrated circuits, facilitating sorting, inventory, and quick component access.

ESD Safety

Electrostatic safety is ensured through conductive polystyrene drawers with a surface resistance of $10^3$ to $10^8$ Ohm/cm. This controlled conduction neutralizes electrostatic charges and effectively protects sensitive components, whether for storage or transport. The black color provides clear visual identification and aesthetic uniformity.

Dimensions and Compatibility

The drawers comply with the standard A4 format with a width of 340 mm, a depth of 250 mm, and a height of 22 mm, offering vertical space savings while maintaining organized and accessible storage. These standardized dimensions allow easy integration into existing modular cabinets, trolleys, or racks without specific modification.

Main Applications

• Electronic laboratories
• Production lines
• Electronic maintenance workshops

Summary

The PM-A4K block is a complete antistatic storage solution combining 9 stackable, self-locking conductive drawers to secure ESD-sensitive components. Equipped with modular options (grids or cups) and a standard A4 format, it guarantees protection, organization, and efficiency within demanding industrial and electronic environments.

Main Characteristics

• Model : PM-A4K Antistatic Storage Block (9 conductive drawers)
• ESD Safety : Conductive polystyrene with surface resistance of $10^3$ to $10^8$ Ohm/cm
• Drawer Dimensions : Standard A4 format (Width 340 x Depth 250 x Height 22 mm)
• Design : Stackable, self-locking drawers in black color
• Modularity : Compatible with antistatic honeycomb grids or sorting cups

Summary of Advantages

• Reliable ESD Protection : Effectively neutralizes electrostatic discharges to preserve sensitive components.
• Stackable & Self-Locking Trays : Ensures perfect stability when stacking multiple blocks.
• Custom Modularity : Adapts to your needs through optional honeycomb grids or storage cups.
• Standard A4 Format : Allows seamless integration without modification into existing cabinets or racks.
• Ideal for Electronics : Specifically designed for laboratories, production lines, and maintenance workshops.
