GM-K Block – Antistatic Storage for Sensitive Components

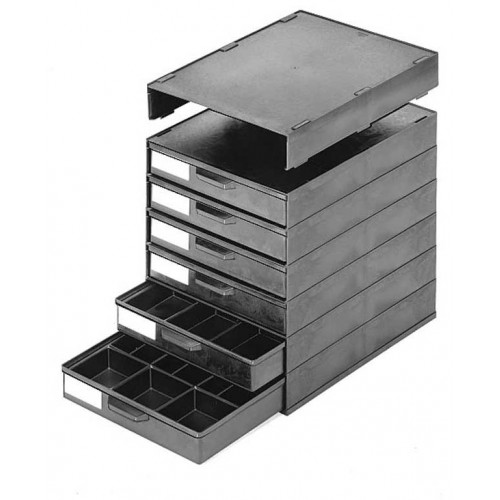

The GM-K block is a storage solution specifically designed for industrial and electronic environments where protection against static electricity is essential. It consists of six conductive drawer-compartments, offering a modular and secure system for storing and transporting sensitive components. Each drawer forms a stackable and self-locking tray, ensuring stable organization even when multiple blocks are stacked.

Storage Options

The drawers of the GM-K block can be equipped with antistatic thermoformed honeycomb grids or cups, depending on specific needs:

• Honeycomb grids : Stable support for delicate electronic components, ventilation, and protection against electrostatic discharges.
• Cups : Separation and organization of small parts such as resistors, capacitors, or integrated circuits, facilitating inventory and workstation preparation.

ESD Safety

The drawers are made of conductive polystyrene, ensuring a surface resistance between $10^3$ and $10^8$ ohms. This controlled conduction neutralizes potential electrostatic charges and protects sensitive electronic components. The black color of the drawers also facilitates visual identification and provides uniform aesthetics.

Dimensions and Compatibility

Each drawer complies with the A4 format, with a width of 340 mm, a depth of 250 mm, and a height of 40 mm. These dimensions provide sufficient space for various types of components while remaining compact and easy to handle. Standardization allows easy integration into existing storage systems, such as modular cabinets or transport trolleys.

Main Applications

• Electronic workshops
• Laboratories
• Production lines handling static-sensitive components

Summary

The GM-K block is an antistatic (ESD) storage solution comprising 6 conductive A4-format drawers (40 mm height). Stackable, self-locking, and compatible with modular accessories, it effectively protects sensitive electronic components in workshops and laboratories.

Main Characteristics

• Model : GM-K Antistatic Storage Block (6 conductive drawers)
• ESD Safety : Conductive polystyrene with surface resistance between $10^3$ and $10^8$ ohms
• Drawer Dimensions : Intermediate A4 format (Width 340 x Depth 250 x Height 40 mm)
• Design : Stackable and self-locking drawers in black color
• Modularity : Compatible with antistatic honeycomb grids or sorting cups

Summary of Advantages

• Compliant ESD Protection : Neutralizes electrostatic discharges to preserve your sensitive electronic components.
• 6 Stackable & Self-Locking Drawers : Guarantees flawless structural stability when stacking multiple blocks.
• Optimized Height (40 mm) : Provides ideal volume to store intermediate-sized parts securely.
• Custom Modularity : Adapts to your needs via compartmentalization options with honeycomb grids or cups.
• Ideal for Professionals : Specifically designed for demanding laboratories, production lines, and electronics workshops.
